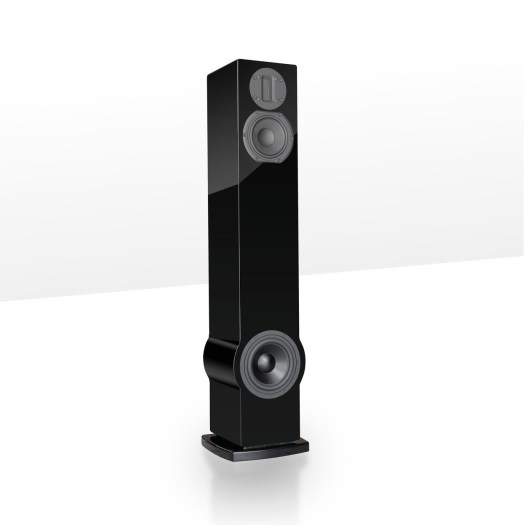

This loudspeaker combines, in one cabinet, the amazing Voicebox S mini-monitor and a slightly smaller version of the Voicebox EBS Extended Bass System in their own acoustically separate volumes.
Designing the Axis Voicebox S — An Interview with John Reilly
How the Axis Voicebox EBS Works
Axis Voicebox FLS Basic Operating Manual (PDF)
| Frequency Response | 60Hz – 20kHz ±2dB (on tweeter axis) 45Hz – 20kHz ±3dB (1/3 octave pink noise) 30 – 150Hz (Bass Extender) |
|---|---|
| Crossover Frequency (Bass Extender) |
Variable 40 – 120Hz |
| Power Output (Bass Extender) |
Active Class D 150W amplifier (variable level control) |
| Phase | Switchable 0º and 180º |
| Drivers | 50mm metal true ribbon (custom) 5.25″ NOMEX paper 7″ high-performance Wavecor aluminium cone |
| Dimensions | 1010mm x 180mm x 200mm (H x W x D). Cable sockets on rear add 28mm to the depth. |
| Net Weight | 18kg (each) |
| Carton Dimensions | 1200mm x 580mm x 340mm (pair) |
| Gross Weight | 38.5kg (pair) |
